Advent of Code '24

Some mind-bending problems from AOC'24

Day 23: LAN Party

After a series of extremely difficult grid problems, this puzzle, refreshingly, was about graphs. The puzzle presents a network of computers, modeled as a graph, where each line specifies a connection between two nodes. The task is twofold, as usual:

1. Identify all triangles in the graph—sets of three nodes where each pair is directly connected—and count those containing at least one node whose name starts with the letter t.
2. Find the largest set of fully interconnected nodes and derive a password by concatenating their names in lexicographical order.

This puzzle goes deep into graph theory, showcasing some interesting algorithms. Below, we explore the workings of this algorithm and its application to solving the puzzle.

Reading the Graph

Graphs are a fundamental structure in computer science and mathematics, defined by a set of nodes and edges. In this problem:

• Each computer corresponds to a node.
• Each connection between two computers corresponds to an edge.

The input is provided as a list of edges, such as kh-tc and qp-kh. To process this efficiently, we construct an adjacency list—a data structure that maps each node to a set of its neighbors. This representation enables quick lookup of adjacent nodes and is computationally efficient for sparse graphs. The adjacency list is in the form of key-value pairs, where the keys are the nodes and the values are the lists containing every other node that connects with the key node.

To explain with an example, for input like:

kh-tc
qp-kh
de-cg

The adjacency list becomes:

{
  "kh": ["tc", "qp"],
  "tc": ["kh"],
  "qp": ["kh"],
  "de": ["cg"],
  "cg": ["de"]
}

If you count the number of unique nodes, we see there are five of them, and hence the number of keys in the adjacency list is five as well. For example, kh appears as a neighbor for both tc and qp, so the list for kh has two members.

Here’s the function to parse the input into an adjacency list:

function parseNetworkMap(connections) {
  const graph = {};
  connections.forEach(connection => {
    const [a, b] = connection.split('-');
    if (!graph[a]) graph[a] = new Set();
    if (!graph[b]) graph[b] = new Set();
    graph[a].add(b);
    graph[b].add(a);
  });
  return graph;
}

Adjacency lists are one of the most common and easiest ways to work with graphs.

P1: Counting Triangles

A triangle in a graph is a set of three nodes where each pair is connected by an edge. To identify triangles in the network, we implemented an iterative approach. This approach leverages the adjacency list to check for shared neighbors among nodes. Let’s explore how this is achieved:

1. Iterate over all nodes: For each node, retrieve its neighbors from the adjacency list.
2. Pairwise neighbor comparison: For each pair of neighbors, check if they are connected to each other.
3. Record triangles: If two neighbors are connected, a triangle is formed with the current node. To avoid duplicates, we sort and store triangles as comma-separated strings in a set.

Here’s the JavaScript implementation:

function findTriangles(graph) {
  const triangles = new Set();

  for (const node in graph) {
    const neighbors = Array.from(graph[node]);

    for (let i = 0; i < neighbors.length; i++) {
      for (let j = i + 1; j < neighbors.length; j++) {
        const neighbor1 = neighbors[i];
        const neighbor2 = neighbors[j];

        if (graph[neighbor1].has(neighbor2)) {
          const triangle = [node, neighbor1, neighbor2].sort();
          triangles.add(triangle.join(','));
        }
      }
    }
  }

  return Array.from(triangles).map(triangle => triangle.split(','));
}

Complexity Analysis

• Time Complexity: Let $n$ be the number of nodes and $e$ the number of edges. For each node, we compare its neighbors pairwise. If a node has $k$ neighbors, this involves $k^2$ comparisons, leading to a worst-case complexity of $O(n \cdot k^2)$, where $k$ is the degree of each node. This is approximately $O(e)$ for sparse graphs.
• Space Complexity: The adjacency list requires $O(n + e)$ space, and the set to store triangles requires additional space proportional to the number of triangles, $O(T)$.

Filtering by Prefix

Once triangles are identified, we filter those containing at least one node whose name starts with t:

function main(str) {
  const connections = str.split('\n');
  const graph = parseNetworkMap(connections);
  const triangles = findTriangles(graph);
  const result = triangles.filter(triangle => triangle.some(name => name.startsWith('t')));
  return result.length;
}

This completes Part 1—counting all relevant triangles.

P2: Finding the Largest Clique (NP-hard)

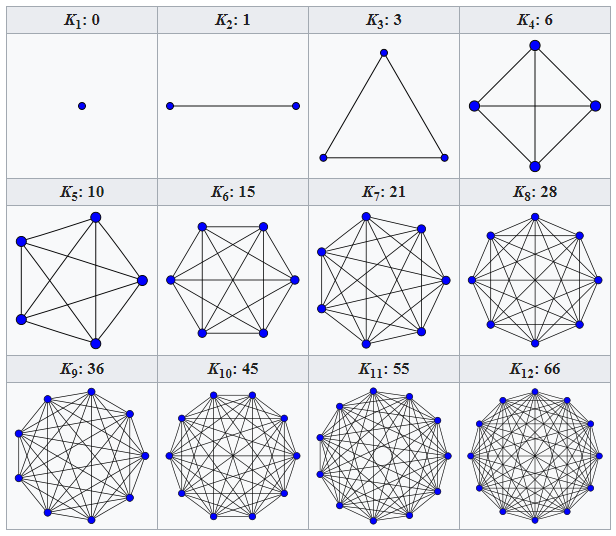

A clique (or a complete graph, as I learned it in grad school graph theory) is a subset of nodes where every pair of nodes is connected by an edge. The largest clique (or max clique) is the one with the most nodes in a graph. To identify the largest clique, we use a recursive implementation of the Bron-Kerbosch algorithm, optimized with pivoting.

Cliques of higher order

This part of the puzzle requires us to find the largest clique, sort it, and return a comma-seperated string. The Max Clique problem is a well-known problem in computer science and graph theory. It is classified as NP-hard (Non-deterministic Polynomial complexity), meaning there is no known polynomial-time algorithm to solve it, and it is computationally difficult as the problem size increases.

Bron-Kerbosch with Pivoting

The Bron-Kerbosch algorithm is a recursive method for finding all maximal cliques in an undirected graph. A clique is a subset of nodes such that every pair of nodes within the subset is connected by an edge. The algorithm identifies maximal cliques, which are cliques that cannot be extended by adding any other adjacent nodes. The maximum clique is the largest possible clique in terms of the number of nodes.

The Bron-Kerbosch algorithm operates by exploring all potential maximal cliques. The recursion proceeds by adding nodes to a potential clique and pruning the search space using two sets:

• $R$ : the current clique being formed
• $P$ : the set of potential candidates that can extend the current clique
• $X$ : the set of nodes already processed and excluded

The pivoting optimization reduces the number of recursive calls by choosing a pivot node from the union of $P$ and $X$. This pivot node helps avoid redundant work by excluding certain nodes from further exploration.

Here’s the pseudocode for the algorithm:

Function BronKerbosch(R, P, X):
    if P is empty and X is empty:
        output R
    else:
        u = a pivot node in P ∪ X
        for each v in P \ N(u):
            BronKerbosch(R ∪ {v}, P ∩ N(v), X ∩ N(v))
            P = P \ {v}
            X = X ∪ {v}

Implementation for Maximum Clique

Here’s the implementation for finding the largest clique:

function findCliques(graph, minSize = 1, maxSize = Infinity) {
  const nodes = Object.keys(graph);
  const cliques = [];

  function bronKerbosch(R, P, X) {
    if (P.length === 0 && X.length === 0) {
      if (R.length >= minSize && R.length <= maxSize) {
        cliques.push([...R]);
      }
      return;
    }

    const pivot = P.concat(X)[0];
    const pivotNeighbors = graph[pivot];

    for (const node of P.filter(n => !pivotNeighbors.has(n))) {
      bronKerbosch(
        [...R, node],
        P.filter(n => graph[node].has(n)),
        X.filter(n => graph[node].has(n))
      );
      P = P.filter(n => n !== node);
      X.push(node);
    }
  }

  bronKerbosch([], nodes, []);
  return cliques;
}

Once we get the cliques, we can determine the largest clique. Sorting the largest clique lexicographically and converting it to a string using comma separation will give us the password, which is the desired answer.

• Time Complexity: Bron-Kerbosch with pivoting is exponential in the size of the graph because it explores all maximal cliques. In the worst case, where the graph is dense, the complexity is $O(2^n)$, where $n$ is the number of nodes.
• Space Complexity: The recursive stack and temporary lists used in each recursion step require space, with the worst-case space complexity for dense graphs being $O(n)$.

I did not know about the Bron-Kerbosch algorithm before this puzzle. I got the insight from people sharing it on Reddit. Reading about it and implementing it was quite fun. Turns out it is a cornerstone of graph theory and is preferred for determining max cliques for a given network. Its recursive nature and the introduction of pivoting make it effective for practical applications.

Once you know the algorithm, you’ll realize that Day 23 was relatively easier compared to last few problems (or maybe I just suck at grids).

Find the puzzle here and my javascript solutions for both the parts here. A really fun TIL but it would suck to be invited to a LAN party like that.
